The Modern Renaissance of Cross-Country Engineering
Cross-country has never been merely a contest of speed. At its highest level, it is a carefully composed examination of judgment, balance, bravery, fitness, and trust between horse and rider. Yet the character of that examination has changed significantly. The contemporary course is no longer understood as a line of immovable timber obstacles placed across open country, but as a carefully engineered environment in which challenge and risk are distinguished with increasing precision. The aim is not to make elite eventing effortless. It is to ensure that an error does not automatically become a catastrophic mechanical event.
This shift reflects a broader understanding of the sport”s hazard profile. When a horse meets a solid boundary at speed, the danger is not limited to a simple refusal or a conventional fall. The horse can become trapped against the obstacle, pitching both itself and the rider into a forward rotational somersault. Research and practical experience have encouraged eventing authorities, builders, and officials to focus on interrupting that rotation. Technologies developed through automotive crash analysis, calibrated fracture systems, and aerospace-inspired material thinking have consequently entered the field. Properly integrated, they preserve the visual authority and tactical demands of a substantial fence while giving the structure a controlled way to yield.
Kinetic Energy and the Mechanics of the Rotational Fall
Consider a horse travelling at approximately 570 metres per minute, a speed associated with demanding cross-country sections. The animal carries considerable translational kinetic energy, and that energy does not disappear when the breast meets a solid timber rail or upright face. Instead, the forward movement is abruptly interrupted at one part of the body while the hindquarters continue to travel. The horse”s mass, the rider”s position, the approach angle, and the height and shape of the obstacle combine in a fraction of a second.
The critical danger arises when the obstacle becomes a fulcrum. A horse”s breast, shoulder, or, in some incidents, a stifle can catch against the fixed structure. The point of contact then acts as a pivot, converting forward motion into angular motion. The horse”s centre of mass rises and passes beyond the support point, while the rider is carried into a rapidly developing rotation. Understanding the physics behind a catastrophic rotational fall reveals why traditional immovable timber obstacles posed such extreme risks.
Mechanical dissipation must therefore occur within milliseconds, before the obstacle has become an effective fulcrum. A frangible element is designed to release under a defined loading pattern, allowing part of the fence to collapse rather than forcing the horse to rotate over a rigid barrier. The intervention is deliberately selective. A brush rub or light contact should not necessarily destroy the fence, while a substantial load associated with a dangerous impact should trigger the mechanism.
- Energy redirection: the device allows structural movement instead of concentrating the entire load at the horse”s point of contact.
- Rotation interruption: a collapsing rail, gate, or post can reduce the opportunity for the breast or limb to act as a pivot.
- Predictable behaviour: calibrated release characteristics help officials and builders create consistent obstacles rather than relying on improvised weakness.
- Preservation of challenge: the fence remains visually imposing and tactically demanding, but its failure mode is less severe.
The engineering principle is familiar from vehicle crash protection. A car is made safer not by making every component unbreakable, but by controlling where and how energy is absorbed. In eventing, the challenge is more exacting because the “occupant” is a living athlete navigating an outdoor obstacle under changing conditions. Frangible technology does not eliminate risk, and it cannot compensate for poor approach, unsuitable ground, or inadequate course design. It does, however, address one of the most consequential mechanisms of injury with a controlled structural response.
Deconstructable Architecture with MIM Clips and Reverse-Pin Mechanisms

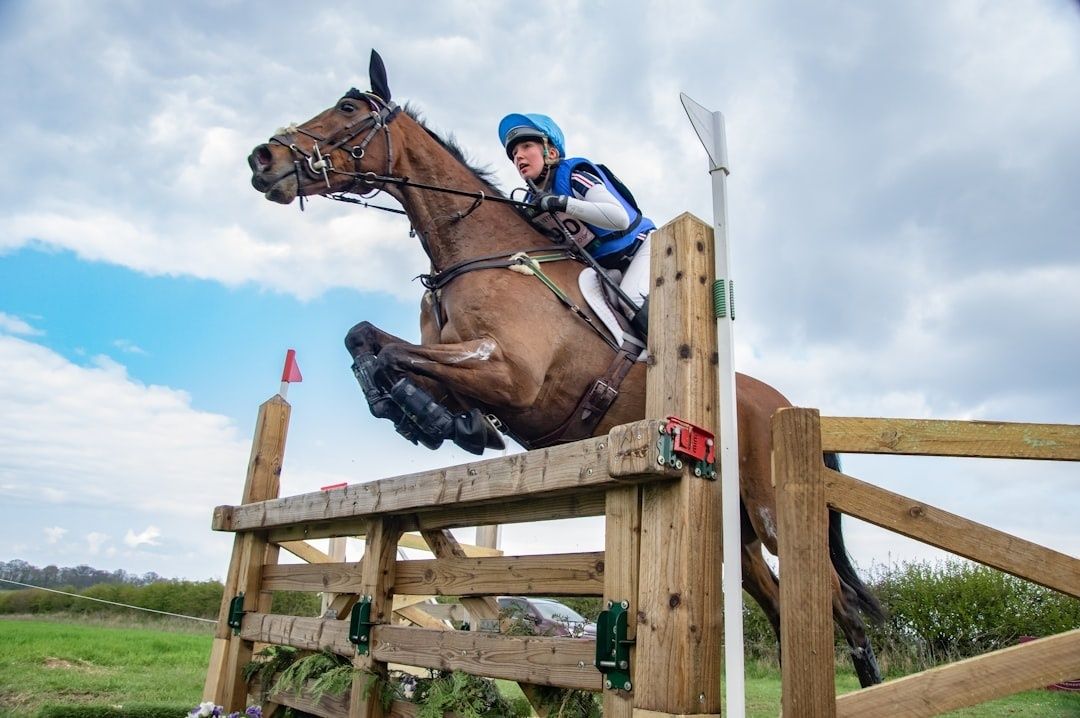

The MIMclip system represents a practical application of calibrated failure engineering. Its clips incorporate designed shear zones that release when sufficient force is applied in the intended direction. The purpose is not to make a fence fragile in ordinary use. Rather, the clip holds the construction together during normal jumping while allowing a substantial vertical or directional load to bring down the relevant section. The system was developed with automotive crash expertise, an approach that places controlled energy absorption at the centre of the design.
Different configurations are suited to different fence geometries and loading patterns. Red and yellow MIM clips have distinct activation thresholds and applications, so substitution is not a casual choice made at the fence line. Traditional frangible pins generally depend on a pin or bracket breaking under a specified load, often at a designated point on an upright fence. Reverse-pin arrangements are intended to respond more effectively to horizontal or directional loading on gates, rails, oxers, and related constructions. Their value is particularly associated with releasing a component earlier in the sequence of a potential rotation.
The current hardware landscape also includes specialised kits for different architectural forms. FEI”s updated March 2026 instruction materials cover MIM Gate, MIM Wall, MIM Post and Rail Narrow, MIM Corner and Breakable Post, and MIM Parallelogram Construction kits. The last of these was previously identified as the Table or Trakehner kit. Such documentation matters because a frangible device is only as reliable as its installation, orientation, supporting structure, and inspection regime.
| Engineering feature | Operational purpose | Implementation consideration |
|---|---|---|
| Calibrated shear zone | Releases under a defined substantial load | Correct component and orientation must be used |
| Colour-coded clip systems | Provides different activation thresholds for different applications | Builders must follow the relevant approved manual |
| Traditional frangible pin | Allows a designated connection to fail under prescribed force | Pin condition and fatigue indicators require inspection |
| Reverse-pin mechanism | Responds to directional or horizontal loading on suitable fence types | Must be fitted only where the construction and rules permit |
| Replaceable or resettable assembly | Permits rapid restoration after activation | Rebuild time and repair details must be recorded |
A crucial distinction remains between activation and damage. A device may be marked, stressed, or partially affected without fully collapsing the obstacle. Inspection therefore extends beyond visual appearance. Fatigue indicators, deformation, damaged fasteners, altered timber, and environmental exposure all matter. A reset procedure must restore the fence to its approved configuration, not simply make it look intact from the spectator side. This is where disciplined building practice protects both safety and competitive fairness.
FEI Regulatory Standards and Course Design Integration
International regulation has progressively moved frangible technology from an optional innovation toward an expected component of responsible course design. FEI rules require approved technology where appropriate at international levels, while national federations have introduced corresponding requirements. In the United States, USEF rule EV145.8, effective from 1 December 2023, requires new cross-country obstacles appropriate for frangible technology to use FEI-approved systems whenever possible at Training level and above. Australia announced a comparable mandatory approach for suitable fences on 1, 2, 3, and 4 courses, including national and FEI competitions, from 1 February 2018.
These rules do not mean that every fence must be fitted with an identical device, nor that every contact should cause a collapse. The course designer must first determine whether the material, geometry, approach, and likely loading make a fence appropriate for frangible construction. The designer then balances several competing requirements: the fence must remain fair at its level, recognisable in the landscape, correctly flagged, structurally secure, and capable of producing a meaningful tactical question. A breakable element should reduce the consequence of a dangerous impact, not disguise an unfair distance or compensate for poor visual presentation.
Testing and judging protocols are equally important. Systems must be capable of resisting ordinary service loads and minor brush rubs while activating when a substantial force is applied. The distinction is central to sporting integrity because activation can carry penalties under the applicable rules. USEF guidance explains that a collapsed obstacle during an otherwise clear attempt can incur 11 penalty points, while activation during a refusal or run-out is handled with the applicable refusal penalty. Repair time must be recorded and deducted, and the fence must be rebuilt before the horse continues.
- Evaluate the fence from the horse”s perspective, including approach visibility, ground line, shadows, and likely take-off points.
- Use only approved devices suitable for the specific construction and loading direction.
- Protect mechanisms from accidental interference by spectators, decorations, equipment, or incorrect jumping direction.
- Ensure jump judges can identify activation, partial damage, and ordinary contact accurately.
- Review the scoring consequences with officials before competition so that safety procedures do not become a source of confusion.
The balance between safety and judging remains an active subject. Riders and builders adapting to stringent protocols can benefit from examining frangible pin rules and what they mean for eventing, particularly the discussion of whether every activation represents the same quality of effort. The answer cannot be separated from the need for reliable evidence, consistent rules, and confidence that a safety device will not produce arbitrary sporting outcomes.
Field Implementation Protocols for Technical Delegates and Builders
Reliable field performance begins before the first horse enters the start box. Technical delegates, course designers, and builders should verify the construction against the approved manual, inspect the hardware for fatigue or damage, and confirm that the intended loading direction is preserved. Torque, fastening, alignment, timber condition, and support points require attention. Atmospheric conditions also matter. Rain, drying cycles, frost, heat, and repeated impacts can alter timber and ground behaviour, even when the frangible component itself appears unchanged.
The FEI Cross-Country Guide for Officials emphasises that frangible and portable fences must be evaluated within the wider course context. A device cannot be considered in isolation from footing, speed, approach angle, obstacle dimensions, combinations, and the horse”s likely line. After activation, the rebuild should follow a documented sequence, with damaged components removed rather than concealed. The event”s risk-management record should then capture what happened, where it happened, and whether the fence behaved as intended.
- Identify the approved configuration: match the fence type, device, colour coding, orientation, and construction manual.
- Inspect before competition: examine clips, pins, indicators, fasteners, timber, flags, decorations, and supporting ground.
- Confirm resistance and alignment: check that the assembly is neither over-tightened nor inadequately secured, and that the fence presents the intended profile from the approach.
- Reinspect during the day: review fences after significant impacts, weather changes, course maintenance, or unusual observations by officials.
- Rebuild correctly after activation: replace damaged parts, restore the approved geometry, record repair time, and obtain the required confirmation before use.
- Submit the incident data: enter fence analysis and fall information through the FEI risk-management reporting system within the specified reporting period.
FEI online risk-management reporting is designed to improve consistency and data accuracy. Course fence information may be entered before the event, while fence analysis and fall reports can be completed during the competition, with final information submitted within 10 days after the event. This creates an important feedback loop. A fence that activates too readily, fails to activate, or produces an unexpected pattern of damage becomes evidence for future design decisions rather than an isolated anecdote.
Safeguarding the Legacy and Future of Three-Day Eventing
Deformable engineering does not diminish the heritage of three-day eventing. It protects the conditions under which that heritage can continue. The grandeur of a cross-country course lies in its scale, terrain, rhythm, and the quality of decisions demanded from horse and rider. A breakable gate or calibrated post does not remove those demands. It changes the consequence of a particular mechanical failure, allowing a substantial obstacle to yield before a moment of contact becomes an irreversible rotation.
The next stage will likely bring closer integration between approved hardware, high-speed video, sensor systems, digital course records, and predictive modelling. Data from activations, falls, weather, ground, and approach patterns can help officials identify recurring risk factors and refine obstacle design. The 2024 recommendation for systematic discussion after a horse fall, with the athlete and Ground Jury or Technical Delegate and a recorded report, reflects this developing culture of structured learning.
For international eventing, the essential principle is both practical and traditional: preserve the thrill by improving the engineering. Spectators should still feel the silence before a horse meets a formidable corner, the acceleration across open ground, and the precision of a successful combination. Riders should still be tested by genuine technical questions. Yet behind that spectacle, calibrated systems should continue to absorb avoidable energy, interrupt dangerous rotation, and turn hard-earned experience into safer practice for the world stage.
